    Inalfa roof systems
    What we do

In our factories, we produce a large variety of roof systems, all innovations within the car itself, creating exceptional driving and in-vehicle experiences for people all over the world. Our solutions are known by its modular approach, installation-space optimization and low-noise approach – all providing excellent windows to different mobility experiences.

Pioneering is a key characteristic of our organization. Since 1946 we have been travelling the world and pushing boundaries by innovating and creating better and more exciting roof openings in cars and trucks. And with success: known for our reliability and flexibility, we are now experts in roof systems technology and solutions. With over 700 life patents and a global market share of approximately 25%, we deliver our roof systems to almost every major car and truck manufacturer in the world.

Our OEM roof systems can be distinguished into bottom loaded, which is mounted from inside the car or top loaded, which is glued from outside the car. You can also distinguish our products into exterior sliders versus interior sliders.

Insliders

Topsliders

Exterior Sliders

Fixed Panels

Sunblinds

Truck Hatches

Inhouse Glass Encapsulation

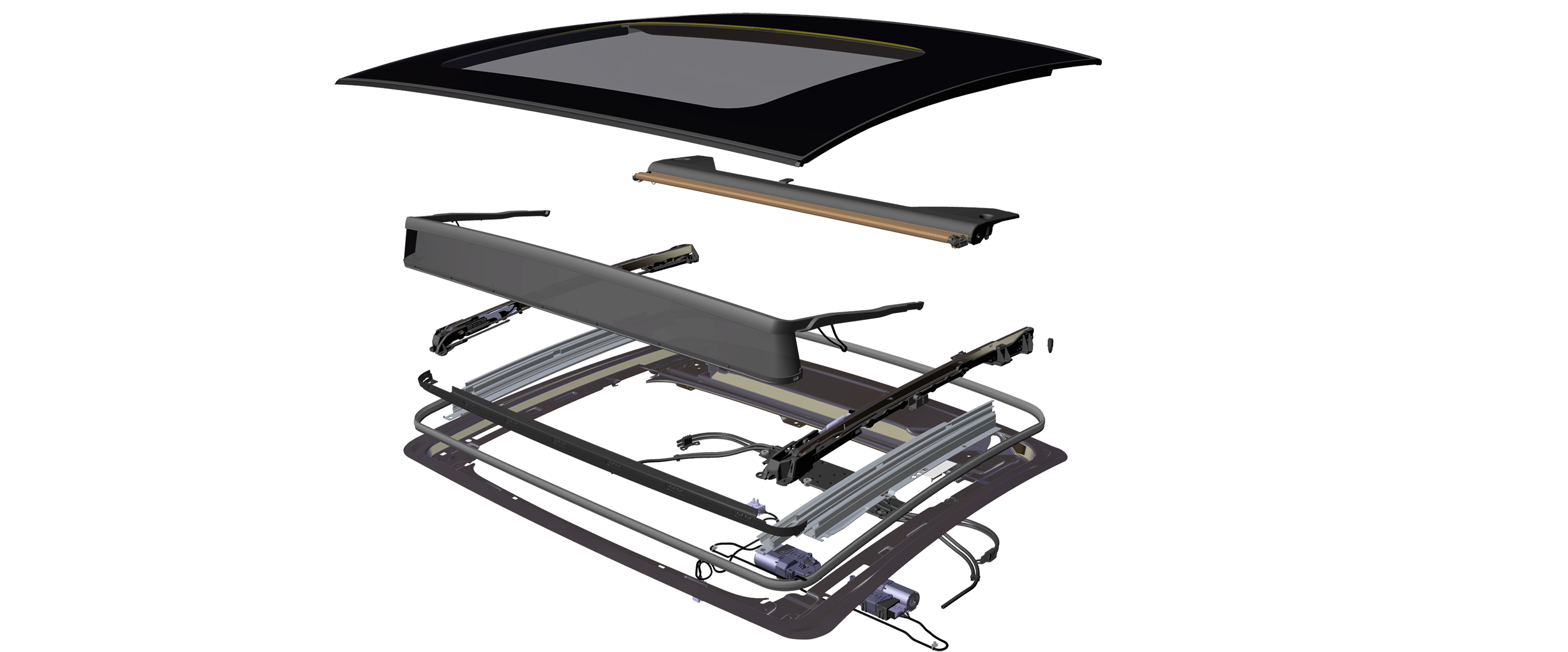

Exploded view, Core products, Inalfa, roof systems

cni

Core products, insliders, Inalfa, Inalfa roofsystemsCore products, insliders, Inalfa, Inalfa roofsystems

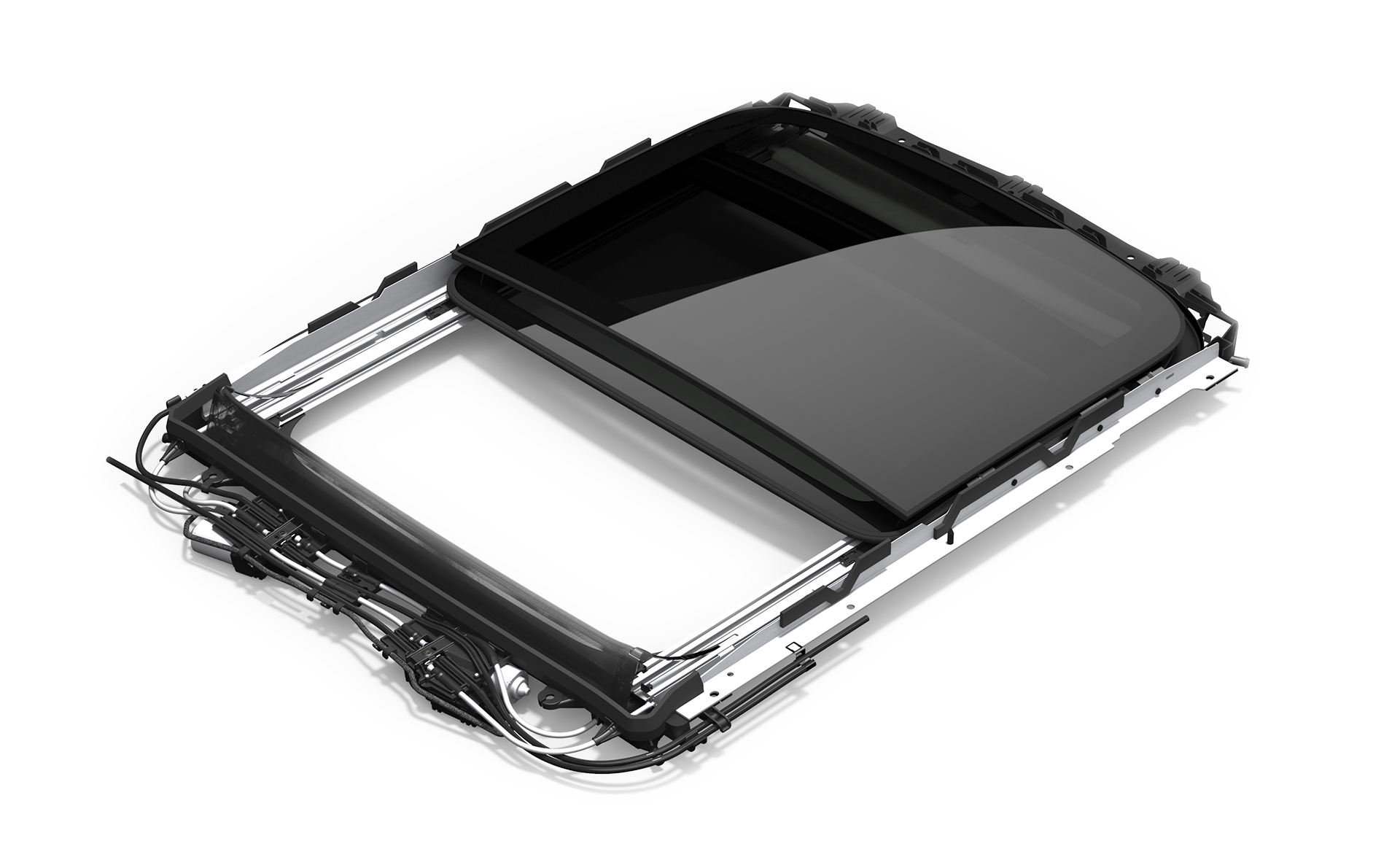

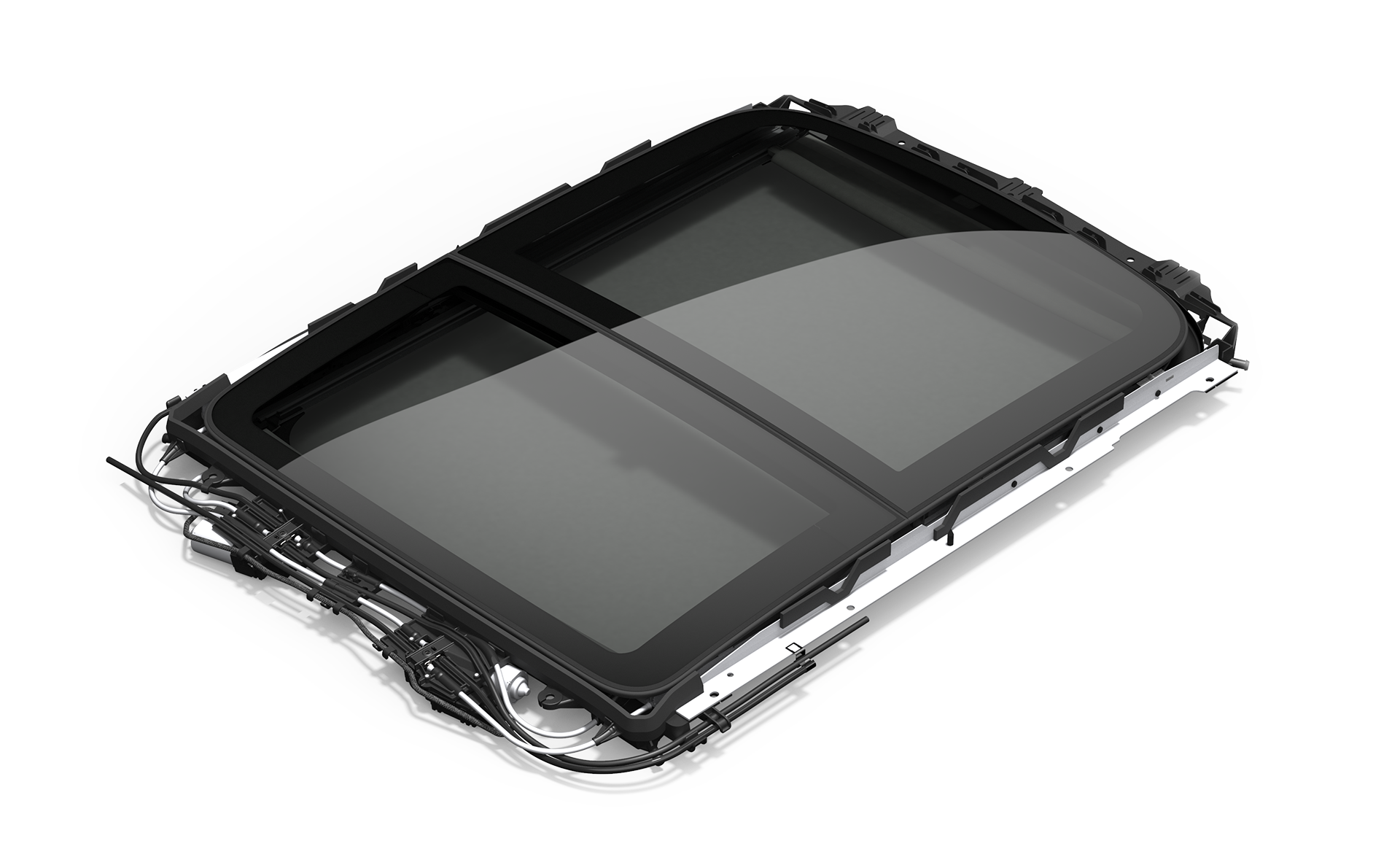

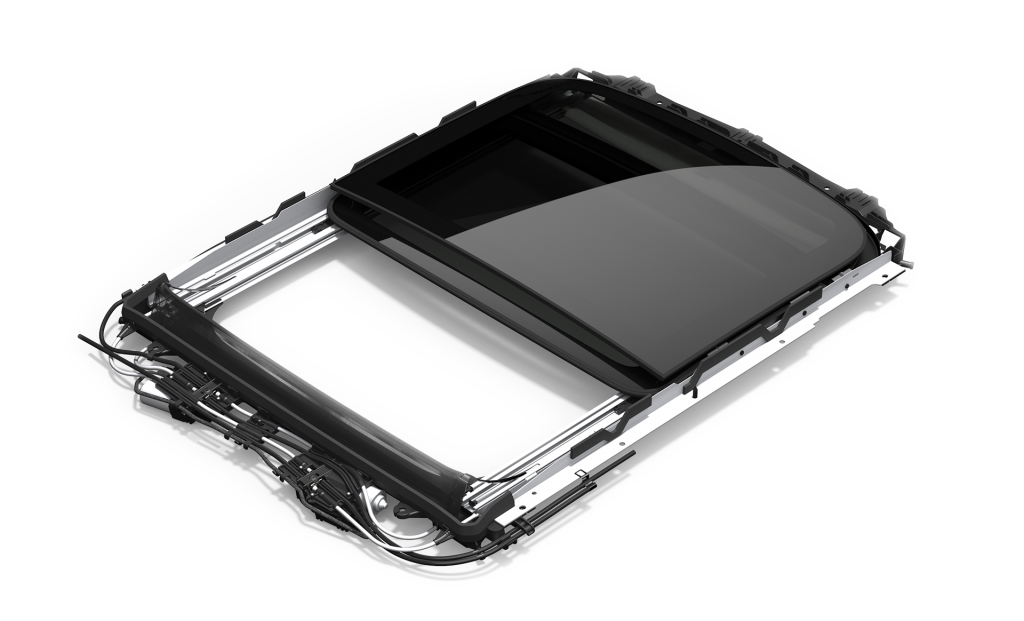

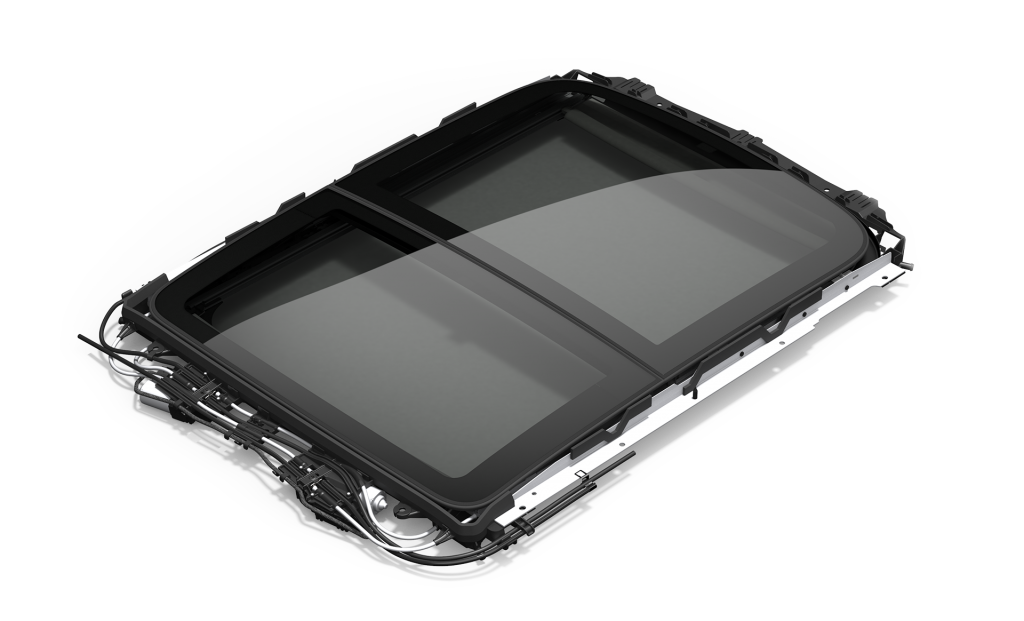

Insliders

An Inslider is always a bottom-loaded system and is available with a single or double panel. It provides all features of a sunroof like fresh air, light and thermal comfort.

Our most standardized roof system available in the smallest dimensions is the TVS (tilt vent slide). This roof system can perfectly fit smaller sized vehicles in the market with only one glass panel. The TVS system provides a fresh air option to your vehicle. We also offer this system in a double panel version where the front panel slides underneath the rear glass panel.

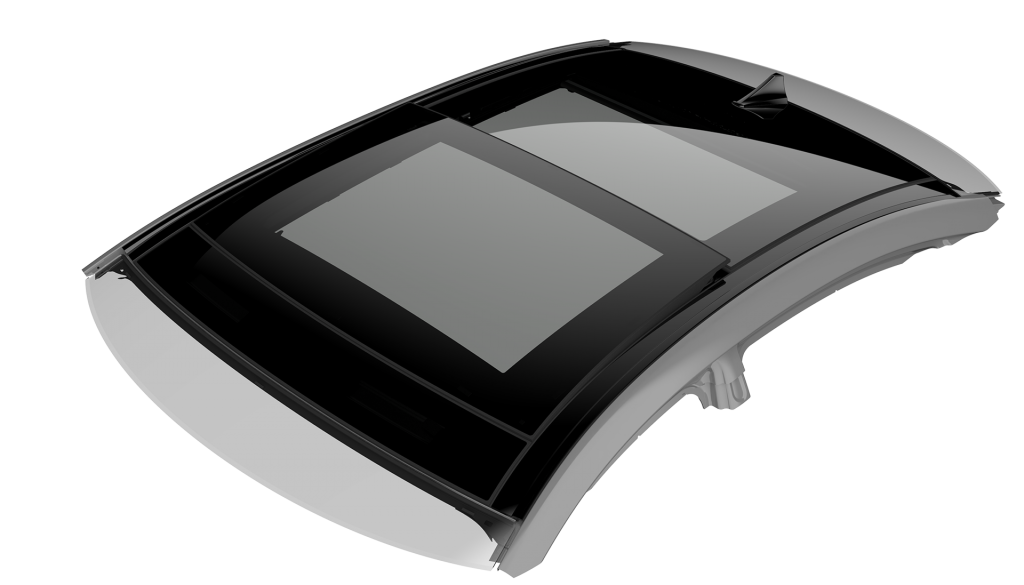

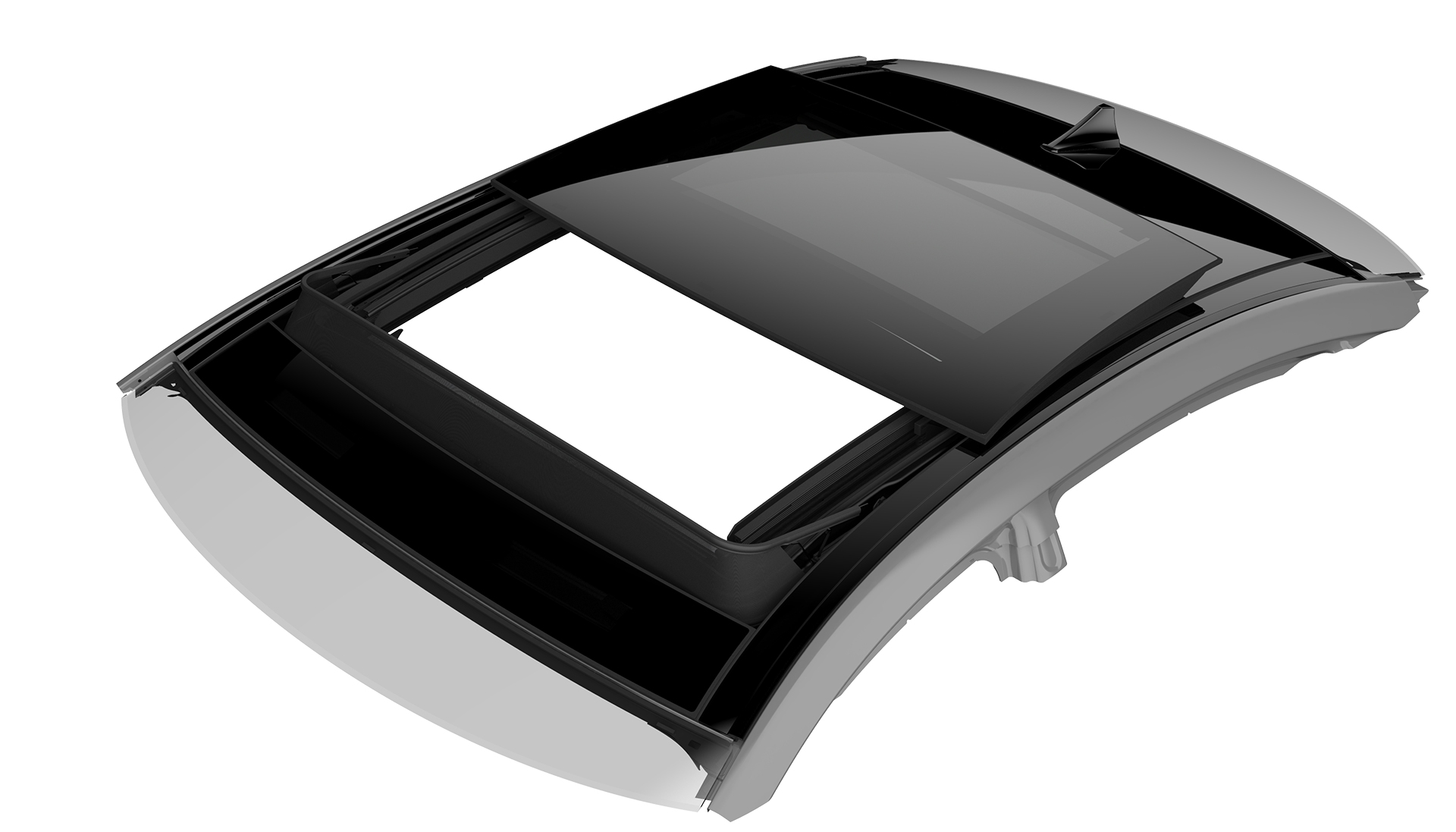

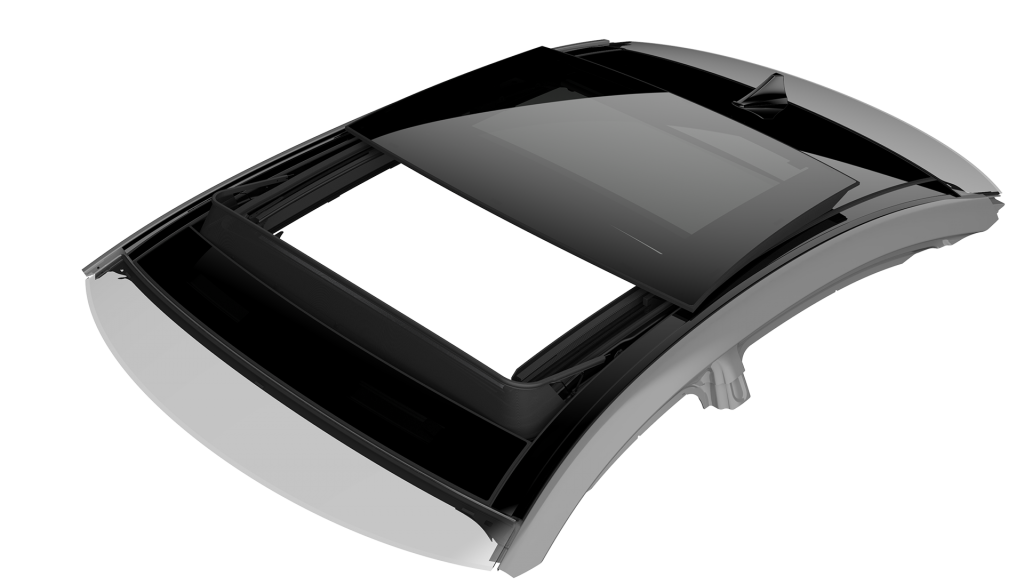

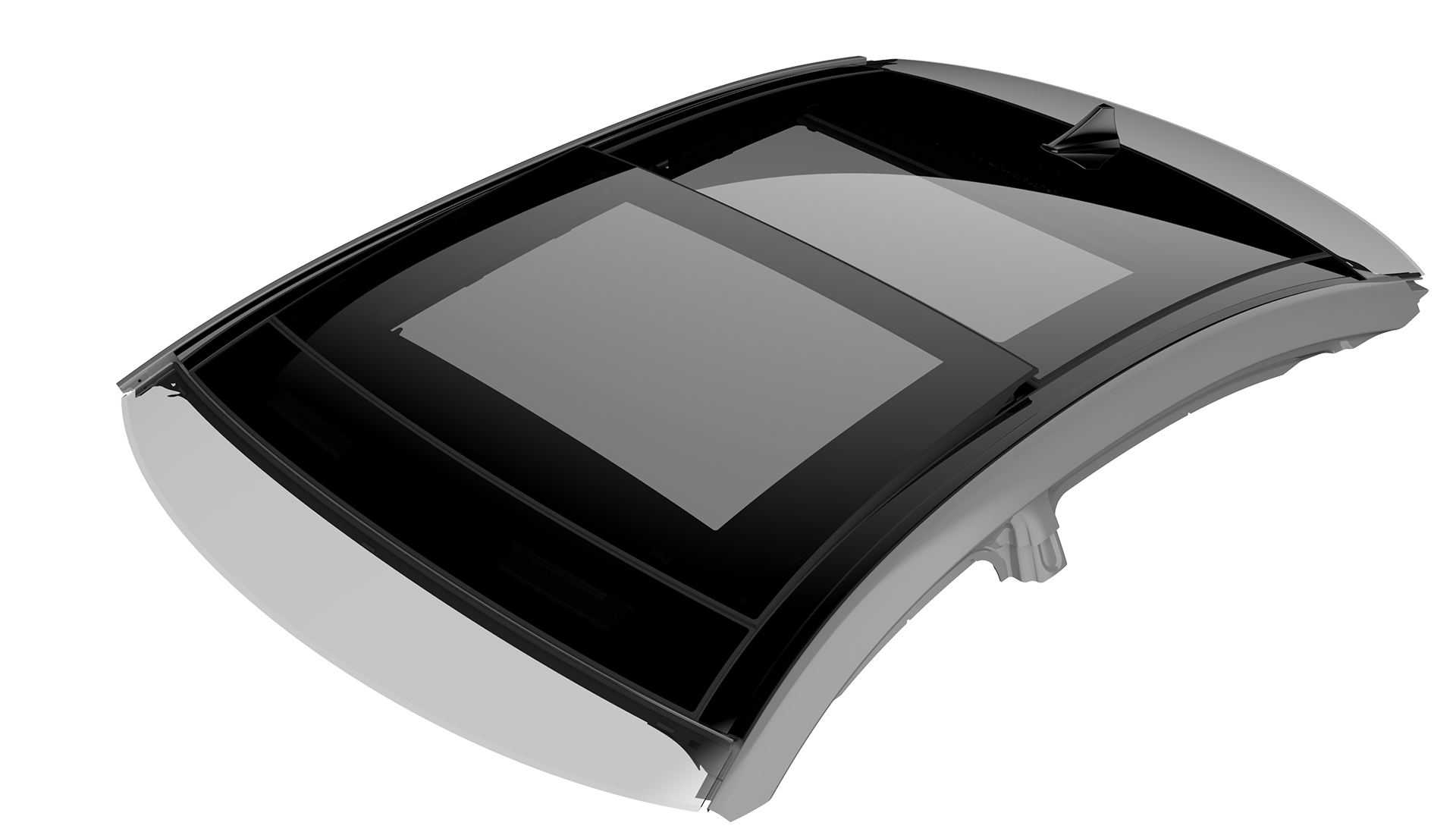

Topsliders

The Topslider is one of our most desired and comfortable roof systems with our customers globally. A Topslider is a two-panel roof system that contains a ventilation position and has a front panel, which slides over the rear panel on the outside. This specific patented design makes a large sliding opening possible. The panel is supported by a front and a rear lever to provide maximum stability at high dynamic loads enabling a large slide opening giving the passengers the pleasure of an open roof system at all speeds. This system is available as bottom-loaded and as top-loaded version.

Top sliders, roof systems, InalfaTop sliders, roof systems, Inalfa
Exterior sliders, Roof systems, automotive, InalfaExterior sliders, Roof systems, automotive, Inalfa

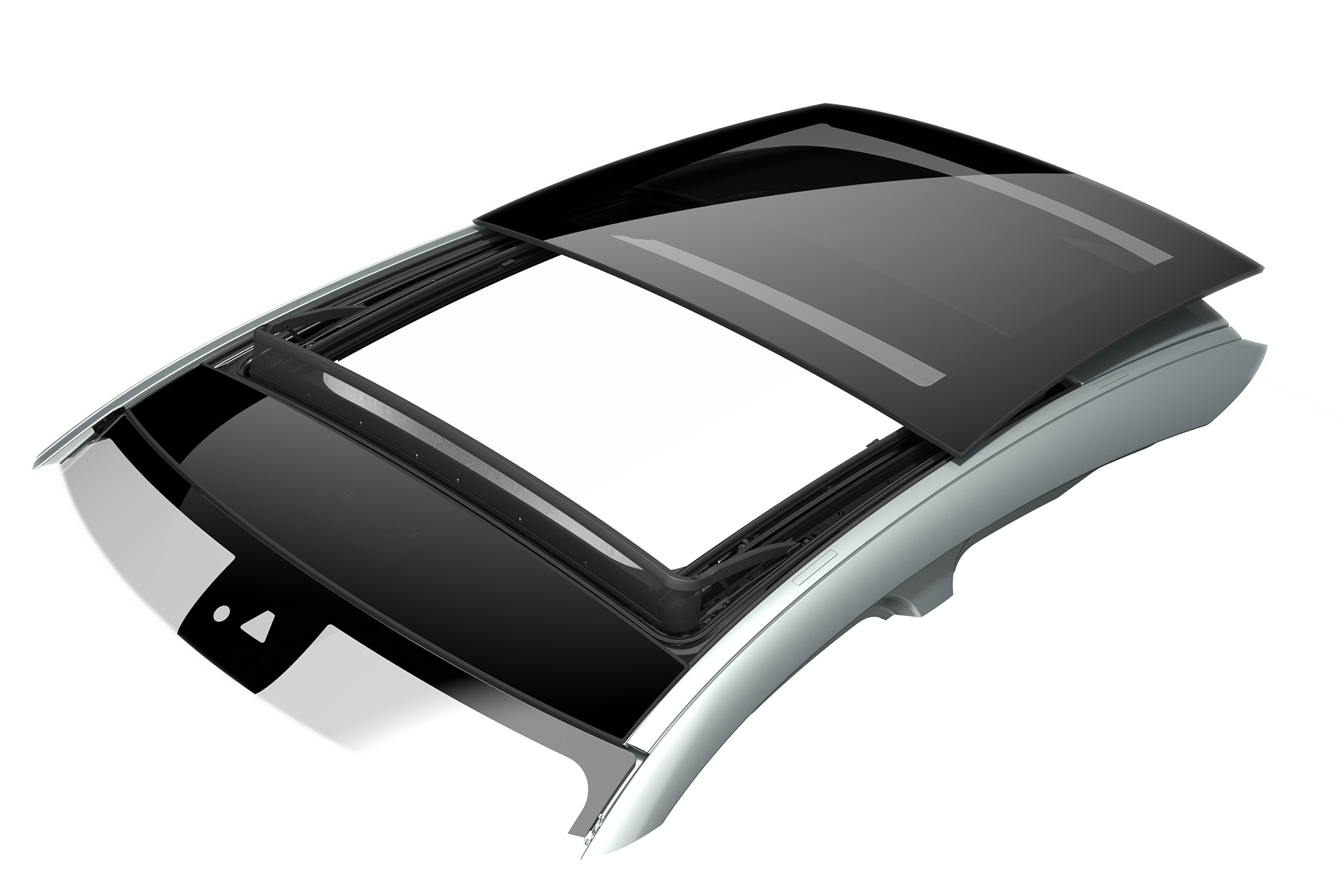

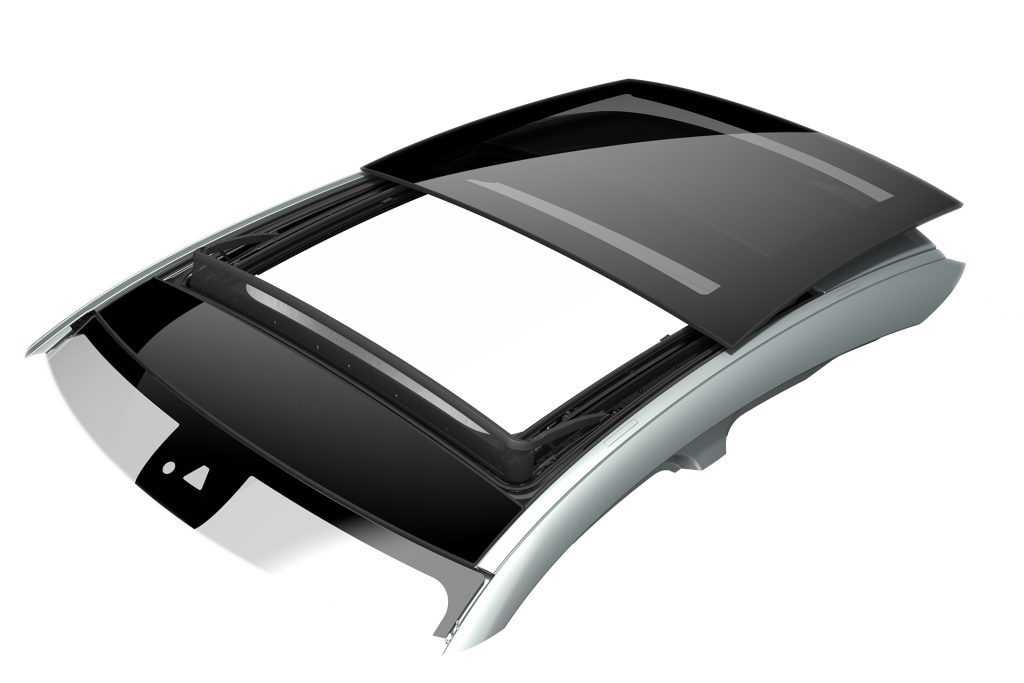

Exterior Sliders

Our second favorite is the Exterior Slider which is a moving roof system including a ventilation function and a slide opening function with the largest possible transparency. The front panel moves over the rear panel or over the roof skin of the vehicle on the outside. The option of adding a rear panel creates a modular set-up that can be applied as single or double panel system, which makes this roof easily applicable on different vehicle models. Largest panel surface we supply to one of our main customers is 1.2 m², being the largest in the market at this moment providing optimized daylight opening and maximum headroom space for passengers.

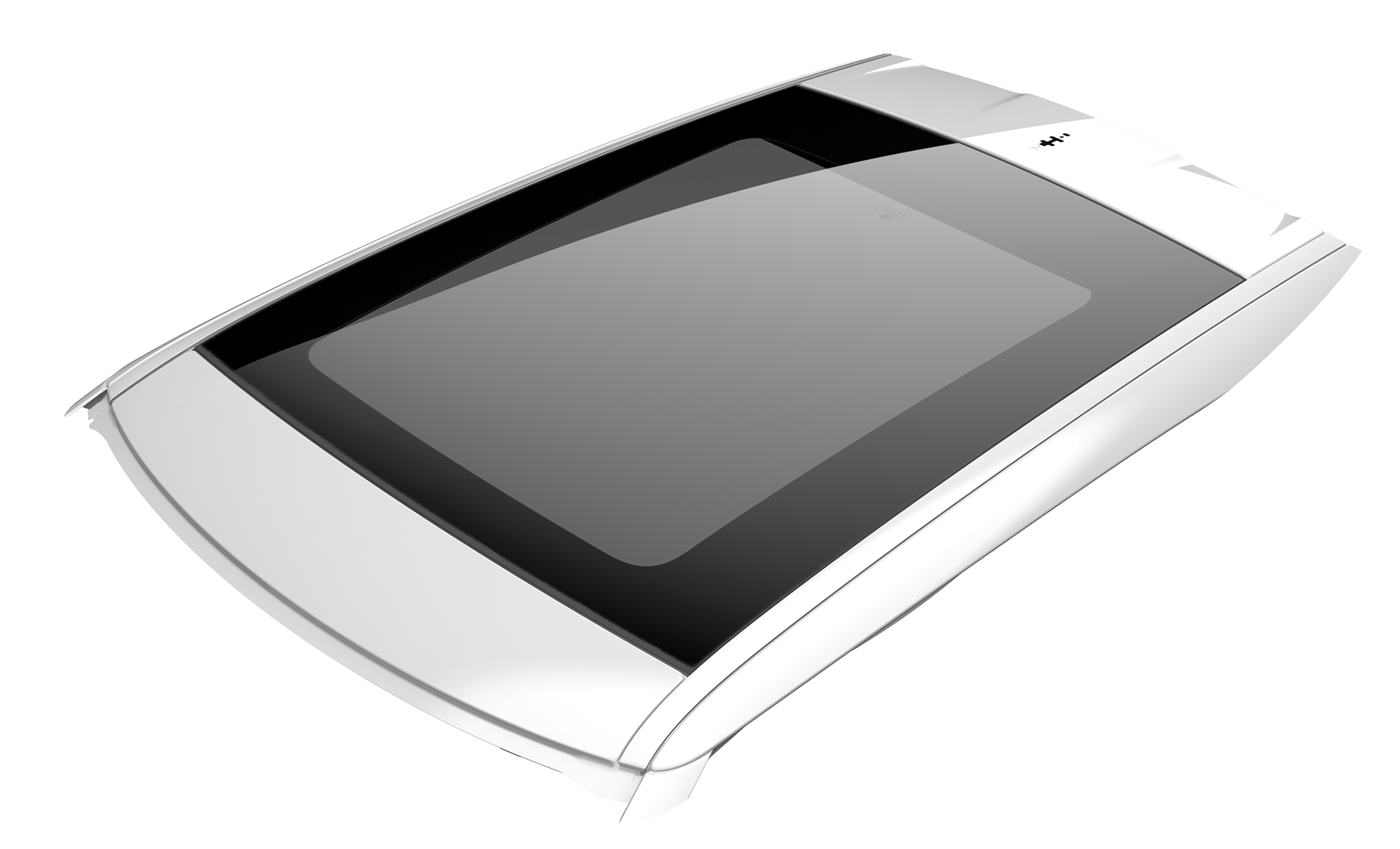

Fixed Panel

Fixed Panels are mostly top-loaded roof systems with one or more non-moving panels. The large panoramic view improves the driving experience above regular roof tops in a vehicle, in most cases supported by an Inalfa sunblind.

Fixed Panels, Roof systems, automotive, Inalfa
Sunblinds, Roof systems, Automotive, InalfaSunblinds, Roof systems, Automotive, Inalfa

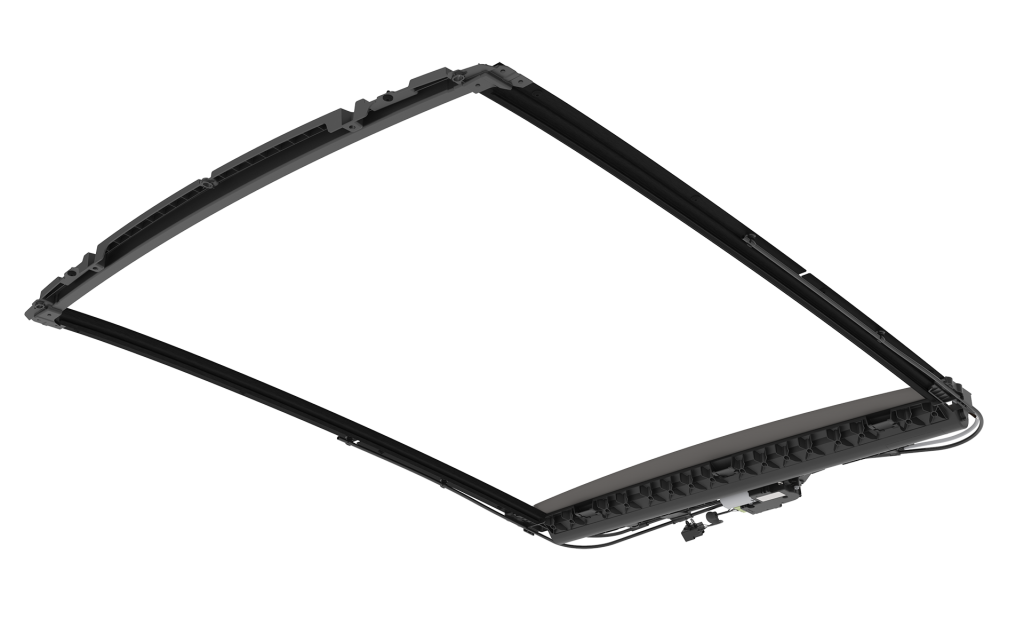

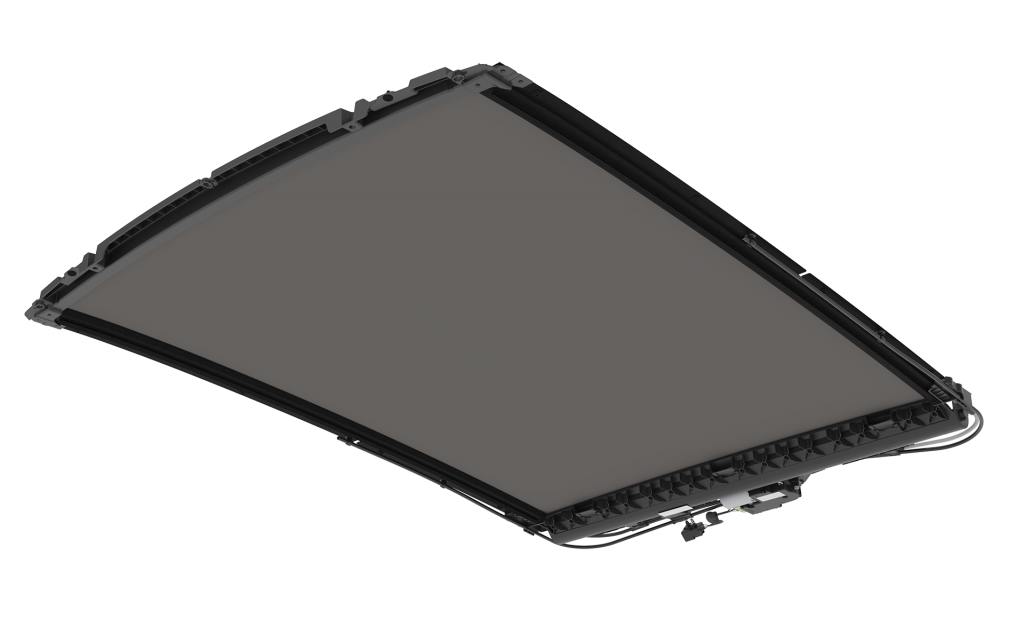

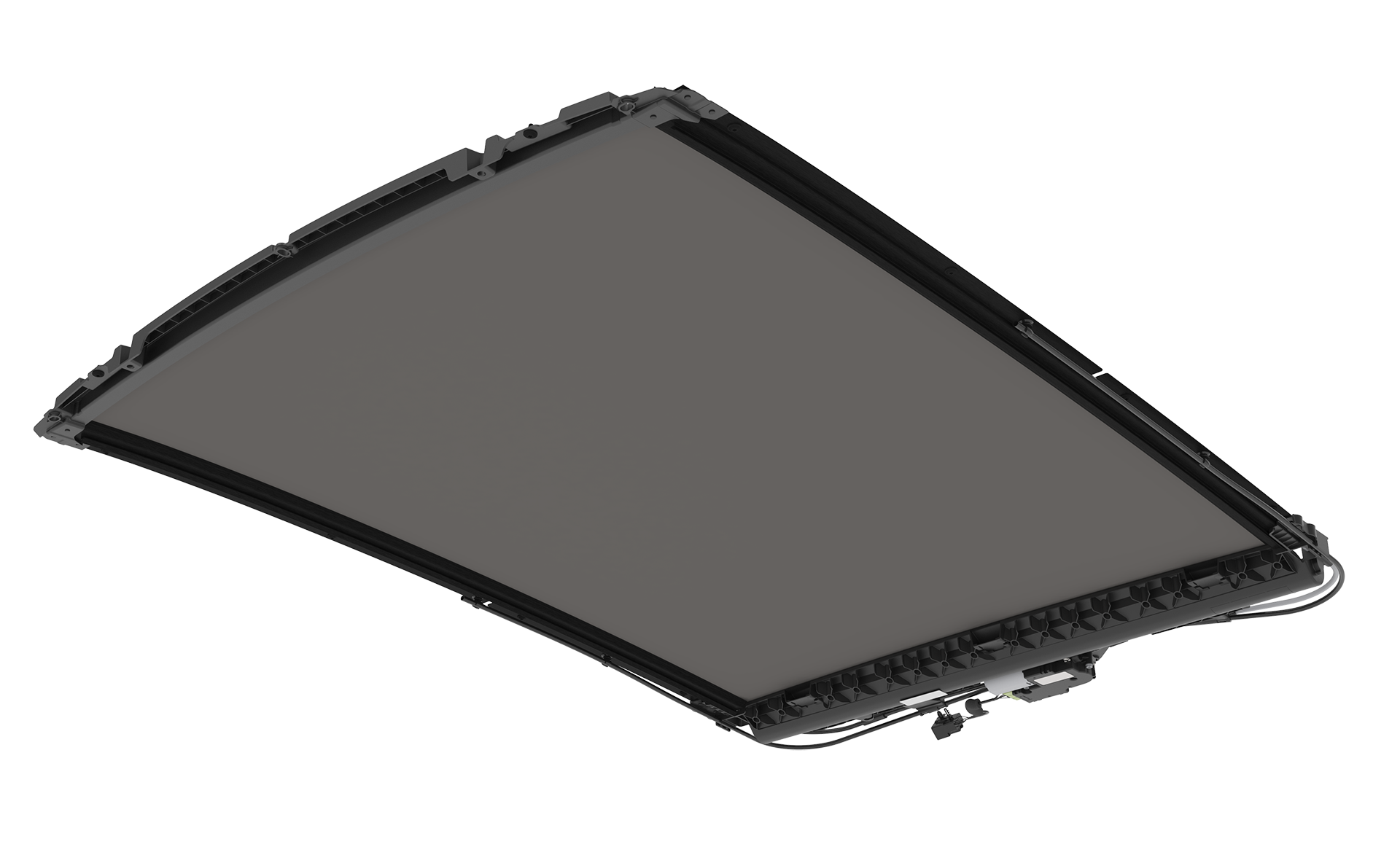

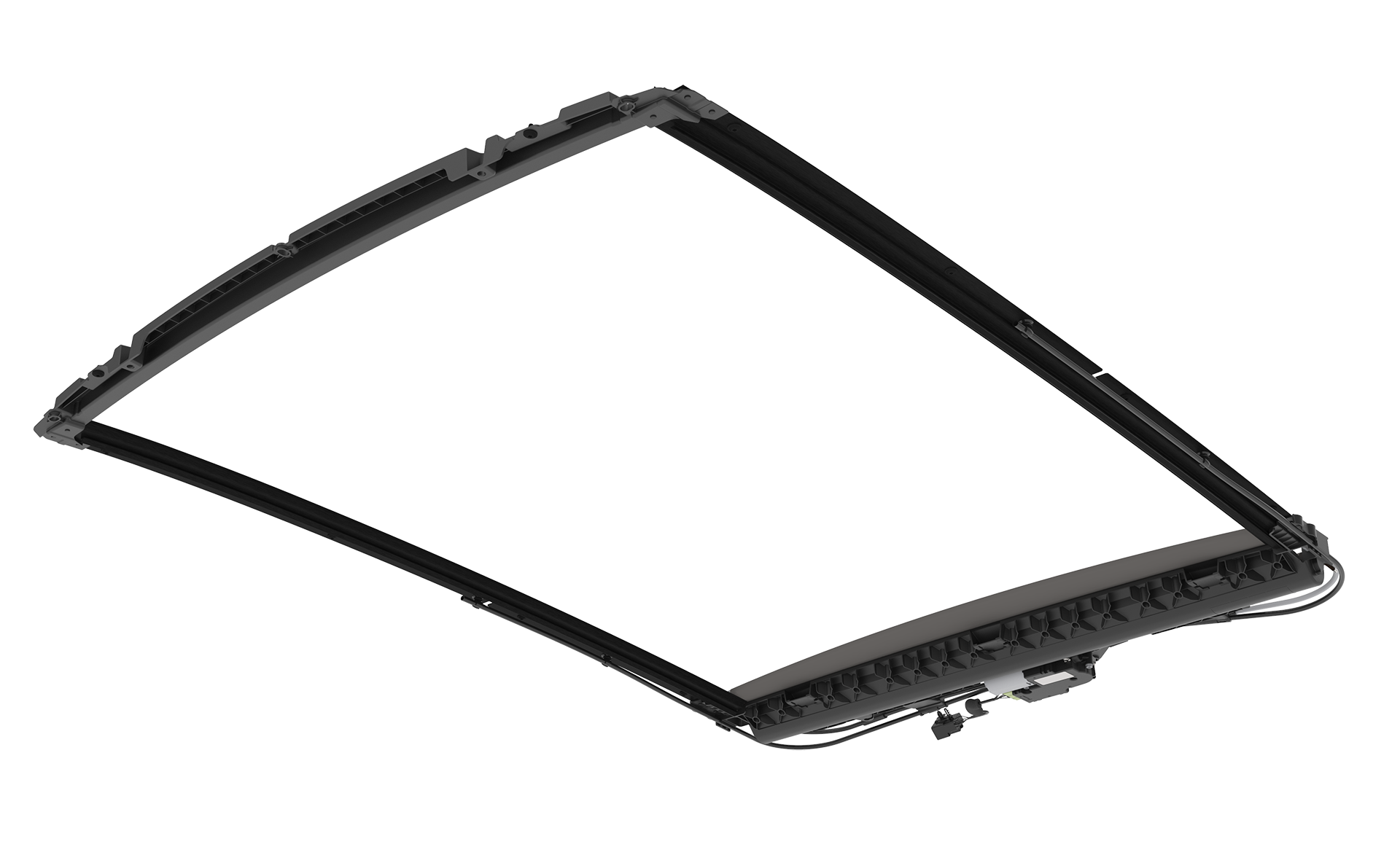

Sunblinds

A Sunblind is a separate blinding product that can be integrated into one of our roof system types or supplied as a stand-alone system. Sunblinds are dominately rollos in every fabric you can imagine. The rollos are being produced within Inalfa’s assembly plants in various regions.

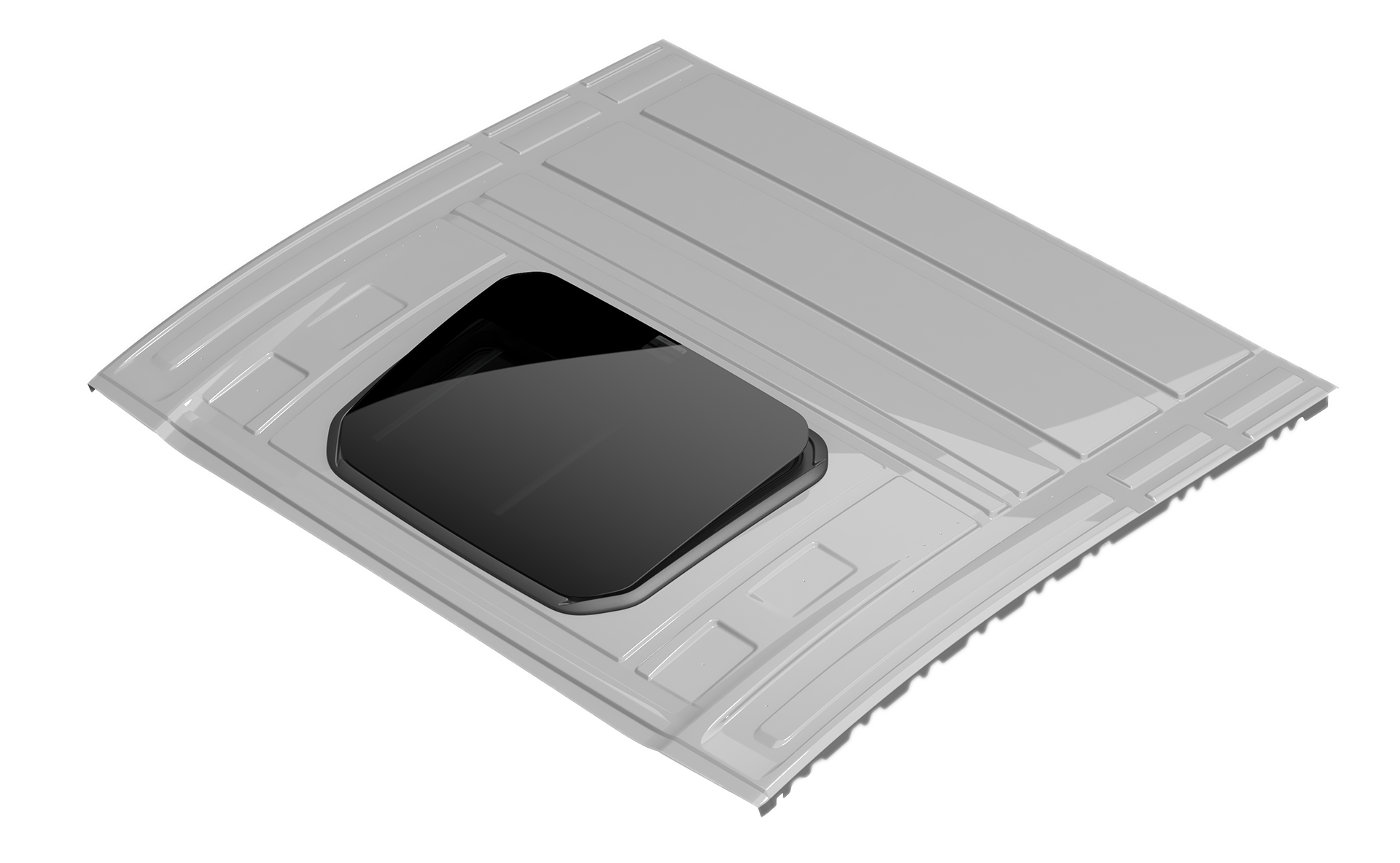

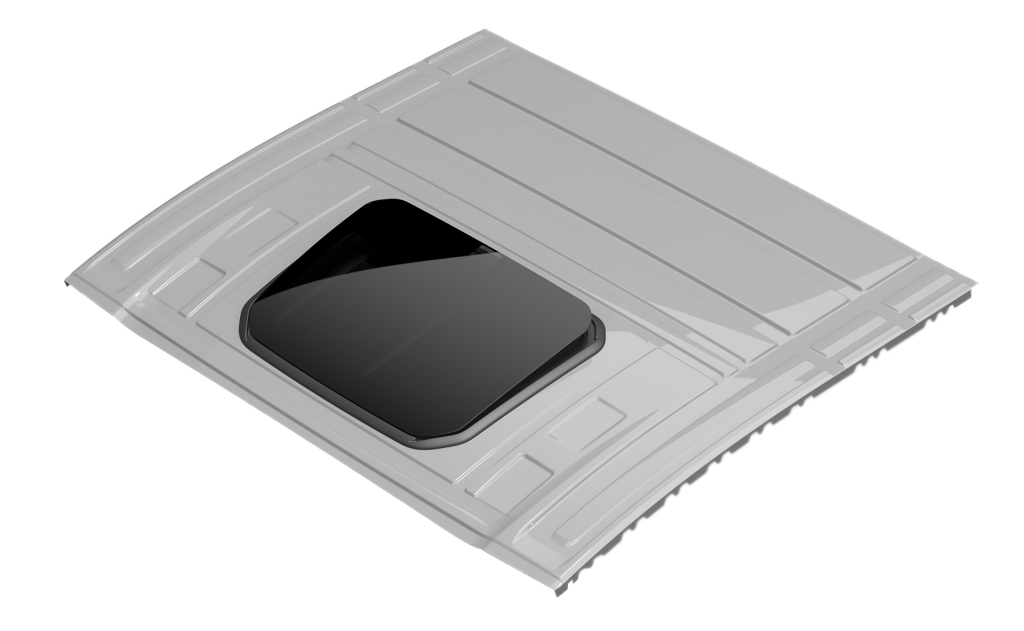

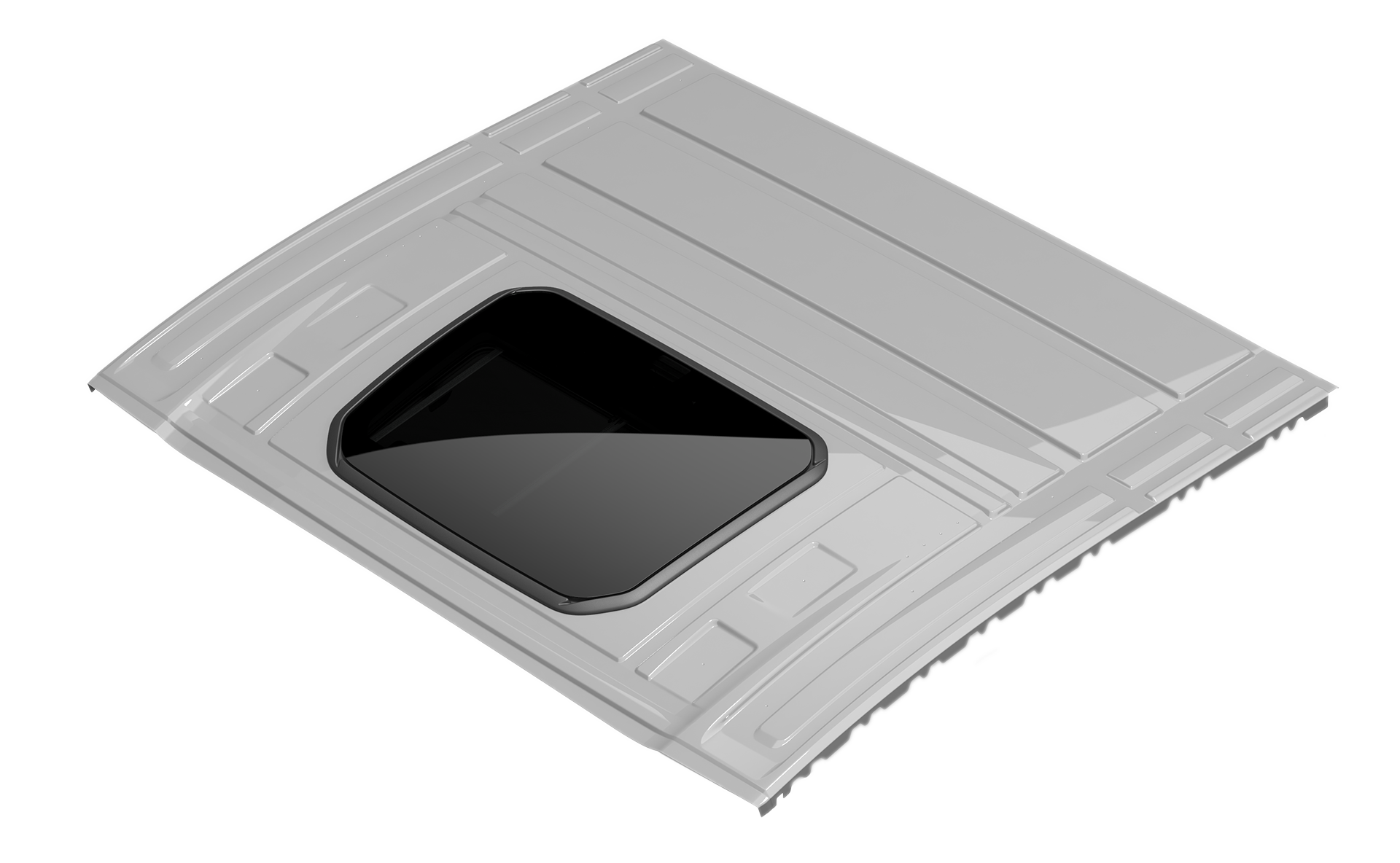

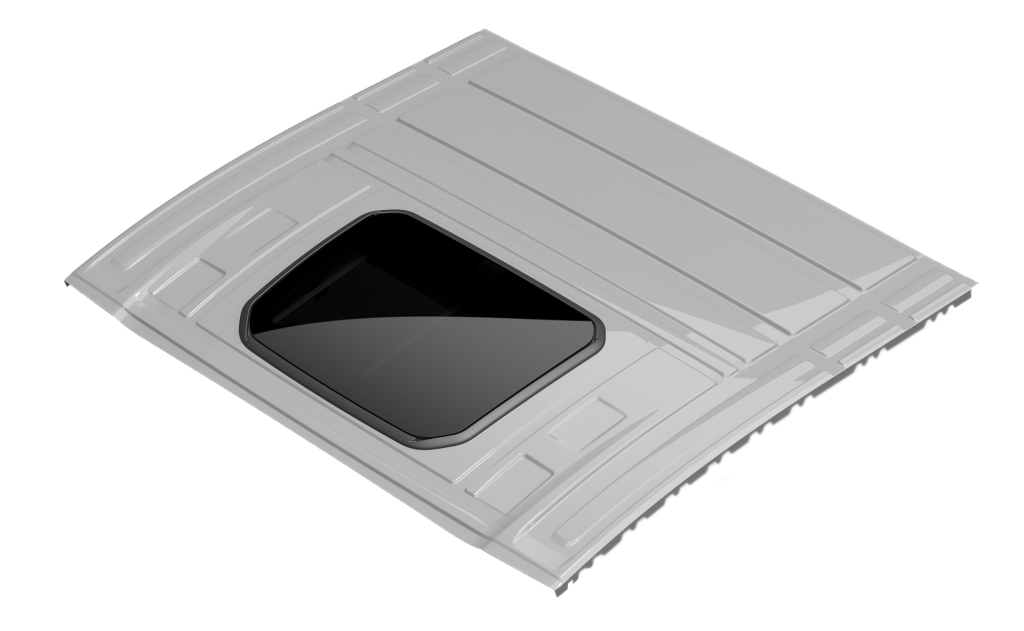

Truck Hatches

Hatches for commercial vehicles are available in many varieties. We can supply Truck Hatches with ventilation function only, with additional slide function, or with additional escape functionality. Our Truck Hatches are designed and engineered based on modularity. Ease and speed of installation in combination with competitive pricing makes Inalfa the Truck Hatch supplier of almost all Western European truck manufacturers.

Truck Hatches, Roof Systems, Automotive, InalfaTruck Hatches, Roof Systems, Automotive, Inalfa
Inhouse Glass Encapsulation, Roof systems, Automotive, Inalfa

Inhouse Glass Encapsulation

Encapsulation is a closed mold injection molding process to form a polymer trim finish to the edge of a panel for functional and esthetical reasons. Our inhouse glass encapsulation is being processed within various Inalfa assembly plants globally.

Service and aftermarket

Inalfa Roof Systems does not supply aftermarket parts or roofs directly to the consumer. We work exclusively for car manufacturers. We do not distribute parts directly to third parties, like car dealers or individuals.

In case of repairs, repair instructions or other services to the car, the official car dealer is the primary contact for support solving any issues to the roof.

For aftermarket products you could contact www.internationalsunroofs.com/ or www.signature-autoproducts.us
